CE Certificate 12mm Clear Toughened Glass FactoryCE Certificate 12mm Clear Toughened Glass FactoryCE Certificate 12mm Clear Toughened Glass FactoryCE Certificate 12mm Clear Toughened Glass Factory

CE Certificate 12mm Clear Toughened Glass Factory

  • High strength-3-5times that of normal annealed glass
  • High safety-human harmless when broken
  • Maximum size could reach to 3000*8000mm
  • Beveling, cutting, drilling, etc. must be done before tempering
  • Most popular use as shower door, canopy, table tops, etc.
  • Production time within 15days after order is confirmed
  • All the glass pack in strong plywood crates with metal belt

CE Certificate 12mm Clear Toughened Glass Factory


About Toughened Glass

Toughened glass, also Tempered Glass is fabricated by heating annealed glass to over 600°C and cooling it rapidly, which locks the outer surfaces of the glass in a state of high compression, and the core or center of the glass in compensating tension. It is a safety glass which is used when strength, thermal resistance and safety are important considerations.



Characteristic

High Strength

The tempered glass performs well in resisting bending and hitting owing to its high strength which is 3-5times that of normal annealed glass. It is able to withstand a surface pressure of 95Mpa.



High Safety

When the tempered glass is broken, it turns into alveolate granules with obtuse angles, which guarantee safety to make sure human harmless, and the toughening process greatly reduces the risk of thermal breakage to ensure less loss.



Heat Stability

The tempered glass is capable of withstanding a temperature change of 250 to 320℃ while normal annealed glass can only bear 20 to 100℃.



Performance Comparison

Items

Tempered Glass

Semi-tempered Glass

Normal annealed glass

Safety

Best

General

None

Intensity

152Mpa

/

30-90Mpa

Thermal Stability

250-320℃

100℃

20-100℃

Surface Stress

95Mpa

24-69Mpa

/

Broken State

Obtuse-angle grain

Shooting-broken

Sharp



Specification

12mm clear toughened glass available size: Maximum 3000*8000mm, Minimum 150*300mm

All the processing done on the 12mm clear toughened glass like beveling, cutting, drilling, etc. must be done before tempering.



Edge work

Any edges could be done perfectly on 12mm clear toughened glass, like flat polished edge (T edge), pencil edge (C edge), beveled edge, ogee edge, matt edge, corner round edge.



Holes and notches

Tempered glass can be supplied with drilled holes (no matter straight or conical) and cut notches. We will consider hole and notch locations and size according to your drawings. Please kindly check below details:

Glass edge to nearest point of hole

12mm clear toughened glass should not have holes located any closer than 2 times the thickness of the glass.

Glass corner to nearest point of hole

Holes should not be located any closer than 6.5 times the thickness of the 12mm clear toughened glass.

Dimension of holes

The minimum dimension of a hole should not be less than the thickness of the glass. The maximum dimension of the hole should not be more than 1/3 the narrowest dimension of the piece.

Notches and cutouts

All must have a fillet with radius equal to, or greater than the thickness of the glass.



Shapes

Except rectangle 12mm clear toughened glass, Jimy Glass also could do shape 12mm clear toughened glass, like round , Trapezoid, parallel, etc.



Application

• Glass Balustrades

• Glass skylight

• Glass canopy

• Shower Screens

• Furniture like table tops

• Many Others.



Quality Standard

In accordance with EN12150 European tempered glass standard

In accordance with ASTM1048 American Standard

In accordance with GB 9963-1998 Tempered Glass Standard

In accordance with GB 17981-1999 Chinese Standard Tempered and Heat-Strengthened Glass

Pass Chinese Safety Glass Compulsory Certification (CCC), IGCC, CSI.

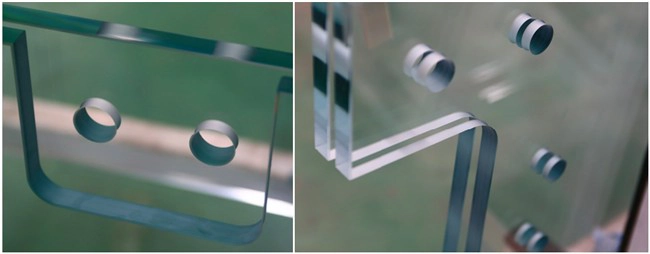

Toughened Glass with Holes and Notches

12mm toughened glass with holes and cutouts

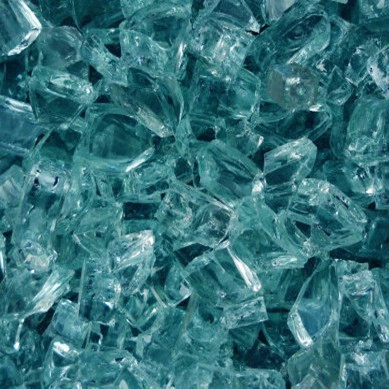

Difference when annealed glass and toughened glass broken

toughened glass broken human harmless


Toughened Glass Furnace and production process
tempered glass furnace

Toughened Glass Strong Wooden Crate Packing and Safety Loading
tempered glass safety packing
