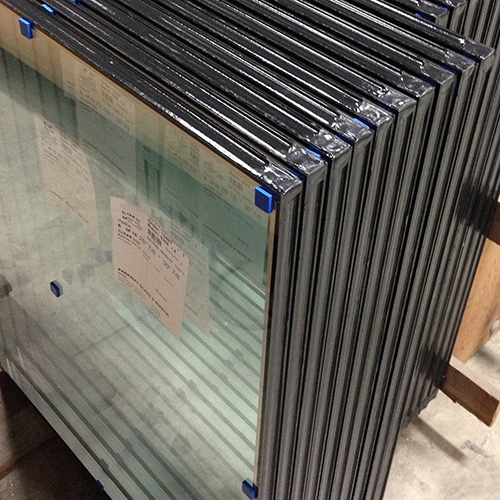

Energy saving 5mm+9A+5mm clear low-e insulated glass manufacturer
- Good sound proof function and reduce U-value effectively
- Keep homes warmer in the winter and cooler in the summer
- Maximum size could reach to 2500mm*4000mm
- Most popular use on curtain wall and window
- Production time within 15days after order is confirmed

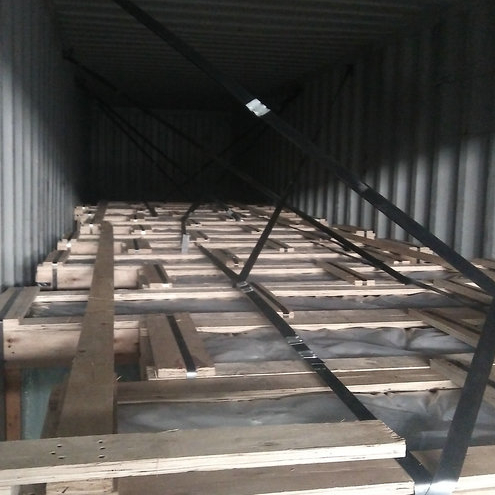

- All the glass pack in strong plywood crates with metal belt
Energy saving 5mm+9A+5mm clear low-e insulated glass manufacturer
About 5mm+9A+5mm Clear low-e Insulated Glass

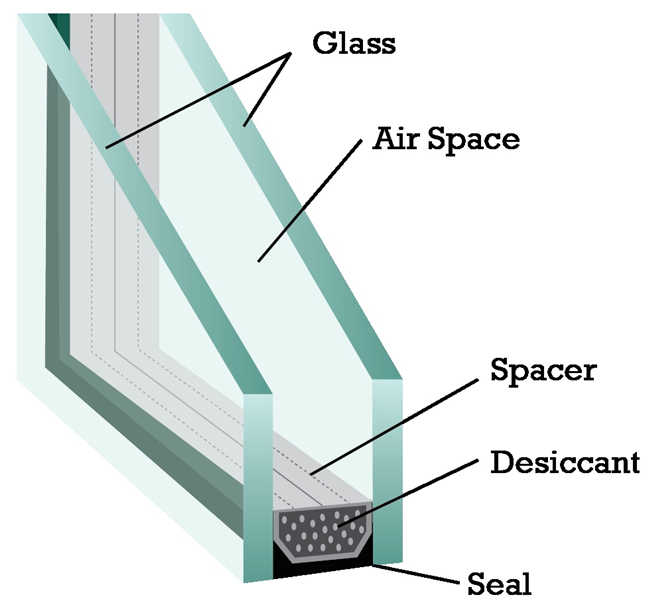

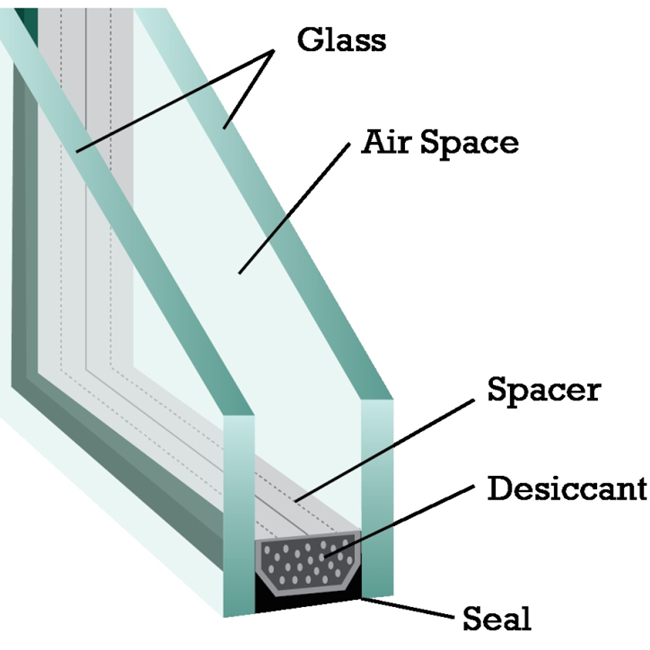

5mm+9A+5mm clear low-e insulated glass unit consists of one pane 5mm clear glass and one panel 5mm low e glass, separated by an aluminum spacer and sealed together at the edge. The insulating airspace is filled with dry air or a noble gas, such as argon or krypton inside to slow the heat exchange and reduce noise levels. The aluminum spacer is filled with silica desiccant pellets to ensure removal of any moisture in the airspace. The IGU is designed to keep homes warmer in the winter and cooler in the summer.
Characteristic
Optical Properties
The visible light transmittance of 5mm+9A+5mm clear low e insulated glass systems is about 80% and the visible light reflectance is about 10%;
Thermal Properties
The U-value is effectively lowered by double glazing units and can be further reduced by filling of inert gases like argon gas;
Acoustical Insulation
Insulated glass has good sound proof function, can reduce noise by more than 30 dB;
Condensation
The dew point of JIMY GLASS insulating glass is below -65 °C which guarantees no condensation formation under normal applications;
Sealing
Aluminum spacer is automatically curved and formed with the fewest joints and dual seals are applied, which ensures excellent sealing characteristics and long application life-time.
5mm+9A+5mm Clear Low-e Insulated Glass Specification
Size: Max: 2500mm*4000mm, Mini: 180mm*350mm
Glass Type: annealed clear insulated glass units and toughened clear insulated glass units
Spacer Fill: Dry Air, noble gas like Argon, etc.
