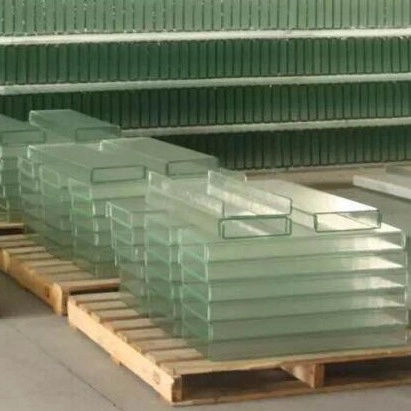

Light weight architecture glass U profile translucent channel glass manufacturer
- U profile glass, also named U shaped glass, U channel glass;
- Ideal light transmission, good sound insulation, excellent thermal insulation;
- Glass thickness 7mm, Flange Height 60mm, Max. Length 6000mm;
- Surface embossing types: Transparent super white, ice pattern and ripple;
- Used as interior or exterior walls, partitions, windows and roofs.
China translucent decorative U profile glass
Introduction
U profile glass, also named U shaped glass, U channel glass, is a kind of new construction glass, can be annealed U glass, also can be U shape safety tempered glass. It has so many outstanding advantages, such as irreplaceable decorative effect, ideal light transmission, good sound insulation, excellent heat insulation, reservation and convenient installation, etc., which make it more and more welcome in architectural buildings.
Characteristic
Introduction
U profile glass, also named U shaped glass, U channel glass, is a kind of new construction glass, can be annealed U glass, also can be U shape safety tempered glass. It has so many outstanding advantages, such as irreplaceable decorative effect, ideal light transmission, good sound insulation, excellent heat insulation, reservation and convenient installation, etc., which make it more and more welcome in architectural buildings.
Characteristic
| Bigger installing span, various shapes |

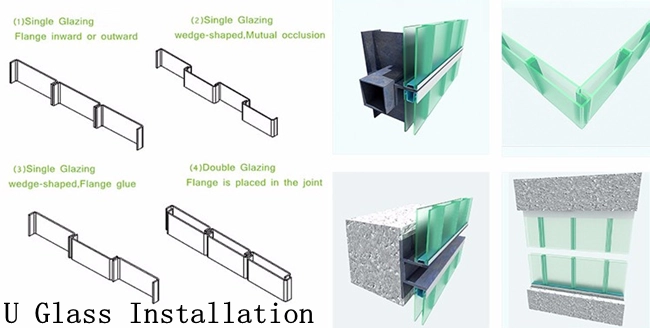

- Compared with general glass, U profile glass has better mechanical strength, allows a bigger span during installing and does not need additional supporters. - It can be installed in both the vertical and horizontal direction, so various kinds of arc-shaped facades and walls can be realized by U channel glass. - Matched aluminum alloy frames could increase the intensity of the structure, and the method of installing is varied. |
| Ideal light transmission, good sound insulation, excellent thermal insulation | - U-glass different coatings could create various effects of light transmission, and if matching with lights, U shaped glass can create the effect of light rays, which is unapproachable for other materials. - Frosted U channel glass has excellent sound insulation performance, which could reach 42 decibel when is not sealed, and 44 decibel when it is matched with thermal insulation materials. - When installed in double layers, the U-profile glass provides perfect performance of heat protecting and thermal insulation. - With excellent refraction performance, U-glass can effectively reduce light pollution. |
| Can produce to safety tempered U glass |
- After being heated in the reinforcing furnace, the load-carrying capability of the surface of the glass could reach 10000 PSI or more. - The intensity of reinforced U-glass is 3-4 times that of common U-glass. - it is harmless glass, because the reinforced U-glass fragments are normally small after breaking and don't have sharp edges. |
| Safe property, low maintenance cost |
- Main material is 100% recyclable and green. - There is no auxiliary adhesive except silica gel, no pollution. - Very convenient cleaning and maintenance. |
Physical Properties
| Mechanical strength |
Fire resistance | Chemical stability | Tensile strength | Mohs Hardness | Modulus of elasticity | Coefficient of linear expansion |
| 700-900N/mm2 | 0.75h | 0.18mg | 30-50N/mm2 | 6-7 | 60000-70000N/mm2 |
75-85X 10 -7 Temperature increase of 1 degree Celsius |
| Type | Light transmittance single wing |
Light transmittance double wing |
Heat transfer coefficient single wing | Heat transfer coefficient double wing |
Sound insulation capacity single wing | Sound insulation capacity double wing |
| U profile glass Ordinary fine lines |
88% |
80% | 4.9W/m2k | 2.35W/m2k | 27db | 38db |
Specification
| Width(mm) |
Flange Height(mm) |
Glass thickness(mm) |
Max. Length(mm) |
Weight (single layer)(KG/M2) |
| 232mm, 262mm, 332mm |
60mm |
7mm | 6000mm |
25.43KG/M2, 24.5KG/M2, 23.43KG/M2 |

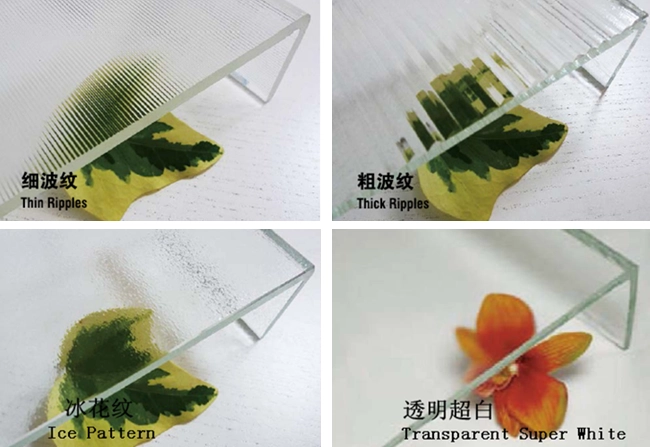

| Surface embossing types | Transparent super white, ice pattern and ripple (thick ripple and thin ripple), special patterns can be produced as per customers' requirements. |
|||
| Glass coating |
Low radiation, sky blue, ceramic color, sand blasting process, etc. |
|||

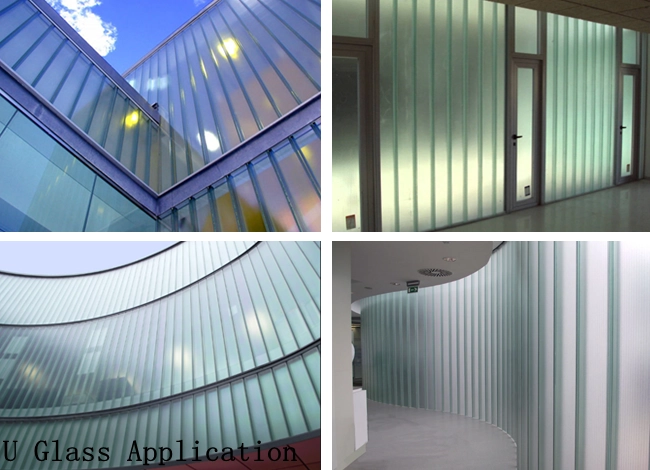

Application

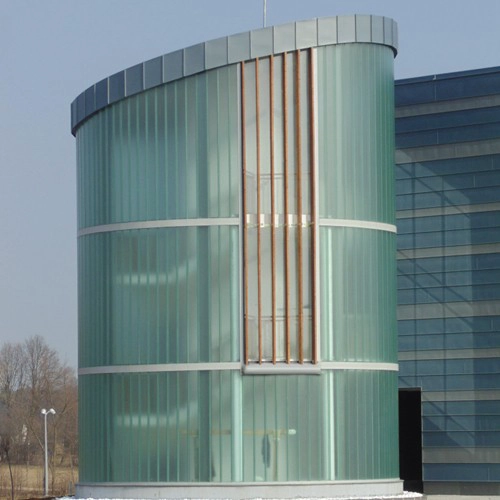

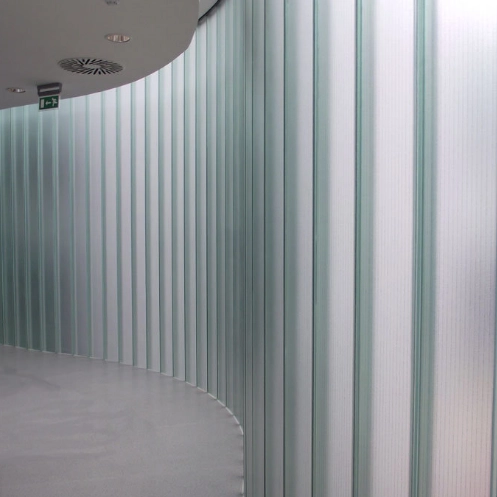

Based on all the perfect characteristics, the U profile translucent glass is widely used for airports, railway stations, stadiums, factories, office buildings, hotels, homes, greenhouses and other industrial and civil construction of interior or exterior walls, partitions, windows and roofs.
Based on all the perfect characteristics, the U profile translucent glass is widely used for airports, railway stations, stadiums, factories, office buildings, hotels, homes, greenhouses and other industrial and civil construction of interior or exterior walls, partitions, windows and roofs.
