5mm Low-E tempered glass+12A+4mm clear tempered glass light gray color insulated glass custom cut size high light transmittance for energy efficient buildings5mm Low-E tempered glass+12A+4mm clear tempered glass light gray color insulated glass custom cut size high light transmittance for energy efficient buildings5mm Low-E tempered glass+12A+4mm clear tempered glass light gray color insulated glass custom cut size high light transmittance for energy efficient buildings5mm Low-E tempered glass+12A+4mm clear tempered glass light gray color insulated glass custom cut size high light transmittance for energy efficient buildings

5mm Low-E tempered glass+12A+4mm clear tempered glass light gray color insulated glass custom cut size high light transmittance for energy efficient buildings

  • Thickness 5+12A+4mm, total 21mm
  • Size custom cut size, max 2440x3660mm
  • Color light gray
  • Features energy efficient, solar control, thermal control, sound control, UV control, etc.
  • Quality no bubbles, no defects, super flat and smooth surface, 100% very good sealed
  • Packing all the glass pack in export plywood crates as strong as possible
  • Production time 10-15 days after order is confirmed

5mm Low-E tempered glass+12A+4mm clear tempered glass insulated glass



As one of the biggest architectural glass processing factories in China, we produce different types of customized glass, includes customized low-e tempered insulated glass. Today, we are glad to share with you insulated glass units which composition is 5mm low-e tempered glass+12A+4mm clear tempered glass, export to Aruba for energy efficient windows and doors.



First, let us talk about what is insulated glass?

Insulated glass is a kind of energy efficient building materials, could help save air conditioner cost in the summer, and save heat cost in the winter, which is produced by combined two or more panes glass together and separated by aluminum spacer and sealed together at the edges.



The insulating airspace is filled with dry air or noble gas, such as argon or krypton inside to slow the heat exchange and reduce noise levels. The aluminum spacer is filled with silica desiccant pellets to ensure removal of any moisture in the airspace. The edges are sealed with very good sealant to make sure no leakage.



Second, why we use low-e glass on the insulated glass?

Low-E glass, or low-emissivity glass, was created to minimize the amount of infrared and ultraviolet light that comes through the glass, without minimizing the amount of light that enters inside. And the Low-E glass has a microscopically thin coating that is transparent and reflects heat, which could keep the temperature in indoor consistent by reflecting the interior temperatures back inside.



In a word, use the low-e glass on the insulated glass, could make sure the high light transmittance, and reach the high performance of energy efficiency, so it is more and more popular to use on the both commercial or residential buildings like windows, doors, exterior curtain walls, etc.



With the low-e glass, the insulated glass could see outside clearly from inside, but the outside could not see the inside clearly from outside

high light transmittance low-e insulated glass


Third, specification of 5mm low-e tempered glass+12A+4mm clear tempered insulating glass

 Thickness  5+12A+4mm total 21mm
 Size  custom cut size, max 2440x3660mm
 Color  light gray
 Features  energy efficient, solar control, thermal control, sound control, UV control, etc.
 Quality  no bubbles, no defects, super flat and smooth surface, 100% very good sealed
 Packing  all the glass pack in export plywood crates as strong as possible
 Production time  10-15 days after order is confirmed


Forth, why to purchase insulated glass from us?

- With over 20 years in the glass industry, advanced machines, and skillful workers, we have rich experience to produce the high quality glass products;

- With the experience to ship out hundreds of containers to over 500 clients, we well known how to deliver the glass for you without any damage;

- With 20 professional sales engineers, could discuss your detail enquiry seriously, to make sure produce the 100% correct glass for you.


Strict quality inspection for every piece glass

custom cut size low-e insulated glass


Insulated glass strong packing and loading

energy efficient insulated glass

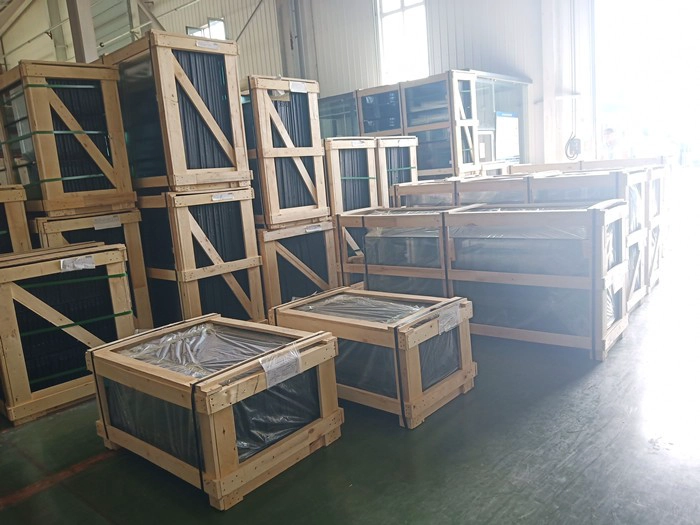

strong packing for insulated glass
