Custom Insulated Glass for Windows & Doors | Triple Glazing & Built-in Blinds | Factory SupplierCustom Insulated Glass for Windows & Doors | Triple Glazing & Built-in Blinds | Factory SupplierCustom Insulated Glass for Windows & Doors | Triple Glazing & Built-in Blinds | Factory SupplierCustom Insulated Glass for Windows & Doors | Triple Glazing & Built-in Blinds | Factory SupplierCustom Insulated Glass for Windows & Doors | Triple Glazing & Built-in Blinds | Factory Supplier

Custom Insulated Glass for Windows & Doors | Triple Glazing & Built-in Blinds | Factory Supplier

  • Glazing Configurations: Double Glazing (1-Cavity) / Triple Glazing (2-Cavities)
  • Built-in Blinds Options: Manual Magnetic Control / Motorized Remote Control
  • Glass Thickness: 3mm to 19mm per pane (Custom combinations available)
  • Spacer Cavity Width: 6mm up to 27mm (Optimized for blind integration)
  • Blind Slats Colors: White, Silver, Cream, Bronze, Charcoal (Customizable)
  • Gas Filling Options: Air or High-Density Argon Gas

Advanced Insulated Glass Units (IGU) with Triple Glazing & Built-in Blinds Options

Elevate your window and door systems with our next-generation Insulated Glass Units (IGU). As a premier architectural glass processing factory, we combine cutting-edge technology with premium materials to offer highly customizable glazing solutions. Beyond standard double glazing, we specialize in high-efficiency Triple Glazing Units and smart Built-in Blinds (Integral Blinds) insulated glass.

Whether you are targeting passive house standards with ultra-low thermal transmittance or seeking sleek, maintenance-free privacy for modern folding doors and office partitions, our factory provides precision-engineered glass panels built to last.

Key Features & Benefits

  • Triple Glazing Upgrade Available: Ideal for extreme climates and passive house designs, delivering the lowest U-values and maximum energy retention.
  • Maintenance-Free Built-in Blinds: Permanently sealed inside the insulated unit—protected from dust, damage, and allergens. Available in manual magnetic control or motorized options.
  • Superior Thermal Insulation: Drastically cuts heating and cooling costs by combining Low-E coatings with argon gas filling.
  • Acoustic Barrier: Triple glazing and varied glass thicknesses disrupt sound waves to eliminate traffic and neighborhood noise.
  • Dual-Seal Durability: Industrial-grade primary butyl and secondary structural sealing ensure 15+ years of leak-free, fog-free performance.

Technical Specifications

Feature

    Specification / Options

Glazing Configurations

    Double Glazing (1-Cavity) / Triple Glazing (2-Cavities)

Built-in Blinds Options

     Manual Magnetic Control / Motorized Remote Control

Glass Thickness

     3mm to 19mm per pane (Custom combinations available)

Spacer Cavity Width

     6mm up to 27mm (Optimized for blind integration)

Blind Slats Colors

     White, Silver, Cream, Bronze, Charcoal (Customizable)

Gas Filling Options

     Air or High-Density Argon Gas

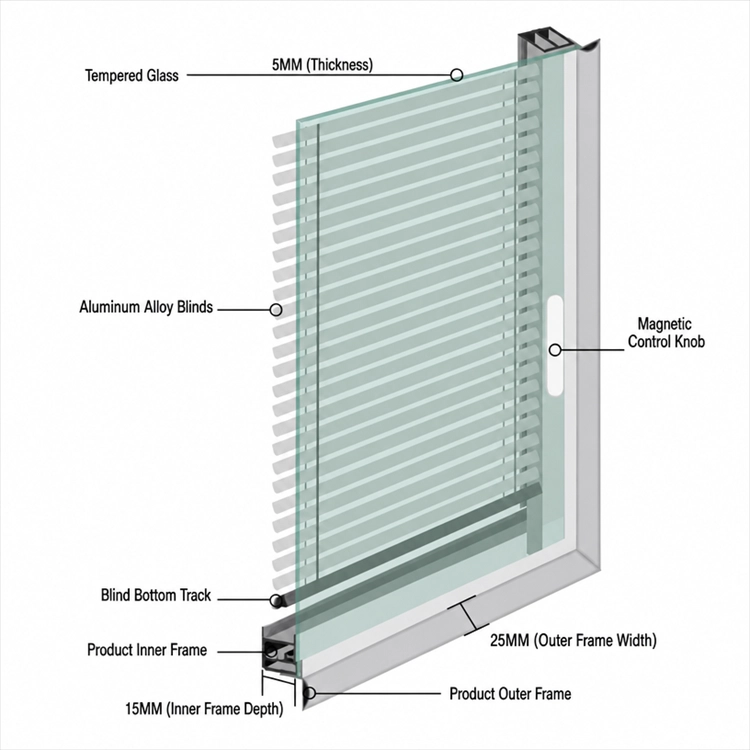

Insulated glass with built-in blinds

integrated blinds double glazing

integral blinds window glass

FAQs

We offer two main systems: a smooth manual magnetic control slider attached to the outer frame, or a motorized smart control system that can be operated via remote control or integrated into home automation systems.
No. Because the blinds are completely sealed within the airtight glass cavity, they never collect dust, dirt, or pet hair. They remain pristine and allergen-free for the lifespan of the window without any maintenance.
Yes. Our integrated blind systems allow you to fully raise, lower, and tilt the slats, giving you total control over natural light entry and room privacy.
Triple glazing adds a third pane of glass and a second gas-filled cavity. It is highly recommended for cold climates, northern facades, or projects aiming for passive house standards, as it reduces heat loss by up to 50% compared to standard double glazing.
A standard configuration is 5mm + 9A + 5mm + 9A + 5mm (three 5mm panes with two 9mm air/argon cavities). However, as a factory, we can fully customize the glass and spacer dimensions to fit your specific frame profile.
Not at all. In fact, when the blinds are closed, they act as an additional thermal barrier that reflects radiant heat, helping to keep interiors cooler in summer and warmer in winter.
Triple glazing is heavier than double glazing. We provide precise weight specifications for your custom order so your window frame manufacturer or hardware supplier can select the correct heavy-duty hinges and profiles.
We use industrial-grade internal mechanisms tested for over 20,000 cycles. The external magnetic sliders can be easily replaced if lost, and our motorized options use reliable, certified internal motors designed for long-term durability.
