Buy solar control 4+9A+4mm insulated glass from China
- Production name: 4+9A+4mm clear tempered insulated glass is also named 17mm clear tempered double glazing glass, 17mm clear toughened insulated glass.
- Glass combination: 4mm clear tempered glass + 9mm air spacer +4mm clear tempered glass
- Glass type: annealed or toughened clear, Low-E, tinted, reflective, low-iron, screen printing, acid etched, etc.
- Benefit: Heatproof, soundproof, solar control, energy saving etc.
- Package: Strong export plywood crate with powder interlayer.
- Application: Windows, doors, skylight, roof, curtain wall, etc.
Energy saving 4+9A+4mm clear tempered insulated glass best price in China
What’s 4+9A+4mm clear tempered insulated glass?
4+9A+4mm clear tempered insulated glass is also named 17mm clear tempered double glazing glass, 17mm clear toughened insulated glass. It’s made of two (or three) glass, using high strength and air tightness composite binder, the glass and desiccant containing aluminum alloy frame bonding, to become the high-performance insulation glass. Regarding as a new building material, It is a good insulation, soundproof, good looking, applicable, and can reduce the building weight. Comparing with the ordinary double glass, double glazing glass is more superior and there is no doubt that it’s known around the world. It’s widely used in windows, doors, skylight, roof, curtain wall, etc.
The structure of the hollow glass
4+9A+4mm clear tempered insulating glass is made of two sheets of 4mm clear tempered glass and 9mm air spacer, surrounded by high strength and high air tightness composite adhesive, and sealing. The middle filled with dry gas, the box filled with desiccant to ensure that the glass between the air dryness.
Available size: Max: 2500mm*4000mm, Mini: 180mm*350mm
Single glass thickness: 3-19mm
Glass color: clear, ultra clear, grey, green, blue, bronze
Aluminum Spacer: 6, 9, 12, 16mm (1/4", 11/32", 1/2", 5/8")
Spacer Fill: Dry Air, noble gas like Argon, etc.
The advantage of 4+9A+4mm insulated glass
It's excellent for heat control, energy saving, soundproof, environmental protection
and designed to keep homes warmer in the winter and cooler in the summer.
Except 4+9A+4mm clear tempered insulated glass, what kind of insulated glass you can get from us?
Thermal seal insulating glass can be selected according to the requirements of a variety of different properties of the normal glass. For example:
4+9A+4mm low E insulated glass
4+9A+4mm reflective insulated glass
4+9A+4mm clear float insulated glass
4+9A+4mm tinted insulated glass
4+9A+4mm low iron insulated glass
4+9A+4mm silk screen insulated glass

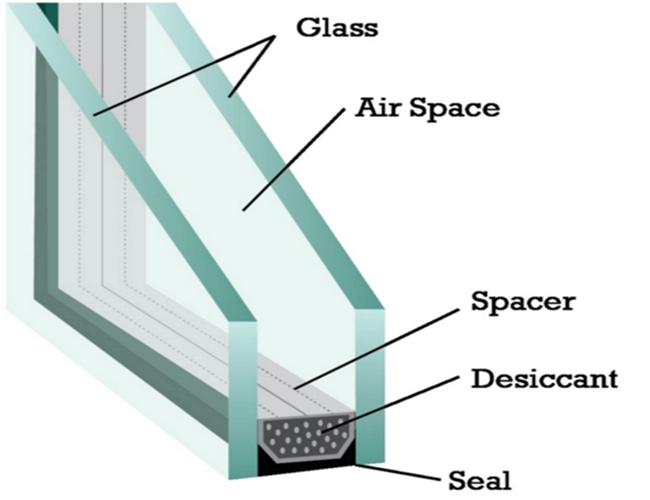

Structure of insulated glass units

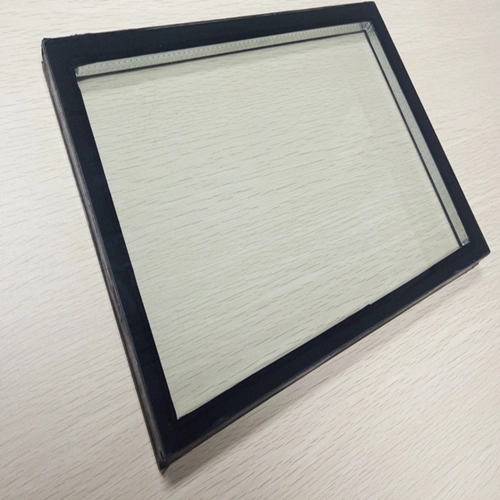

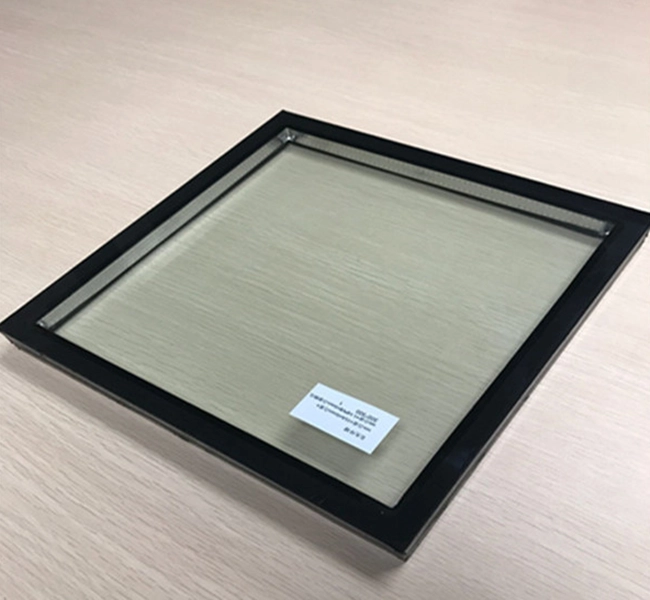

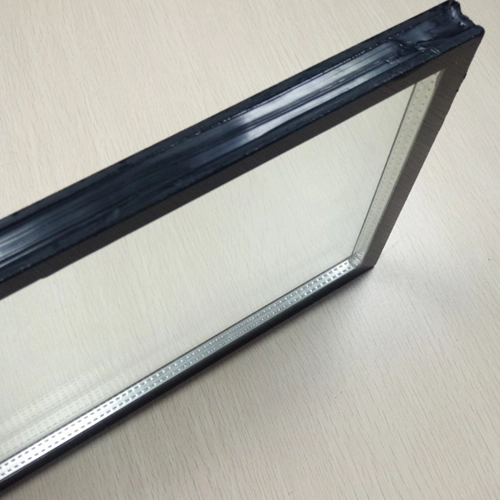

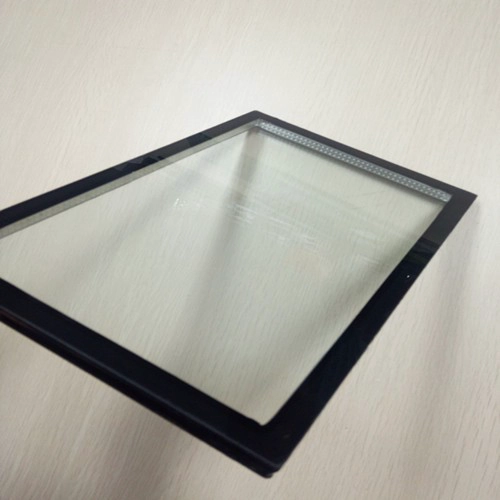

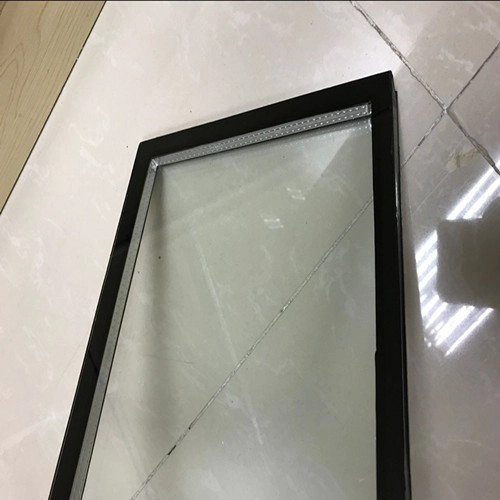

Picture of double glazing glass

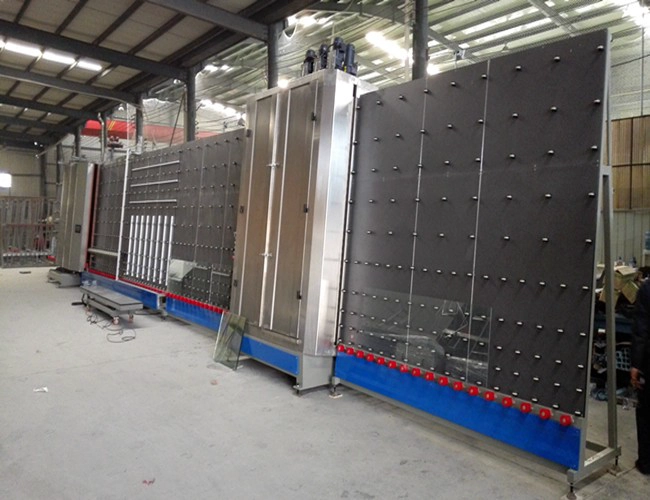

Production line of insulated glass

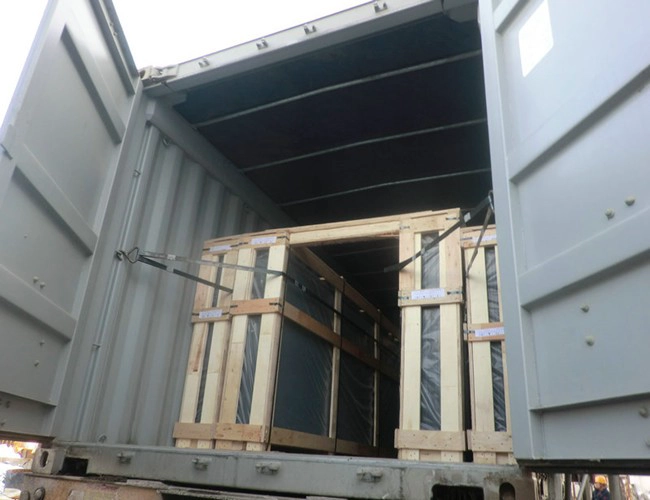

Strong package of insulating glass
