SGCC CE certified tempered colored EVA laminated glass China supplierSGCC CE certified tempered colored EVA laminated glass China supplierSGCC CE certified tempered colored EVA laminated glass China supplierSGCC CE certified tempered colored EVA laminated glass China supplier

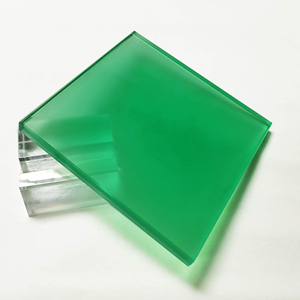

SGCC CE certified tempered colored EVA laminated glass China supplier

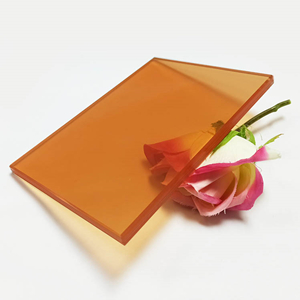

  • Item: Tempered colored EVA laminated glass;

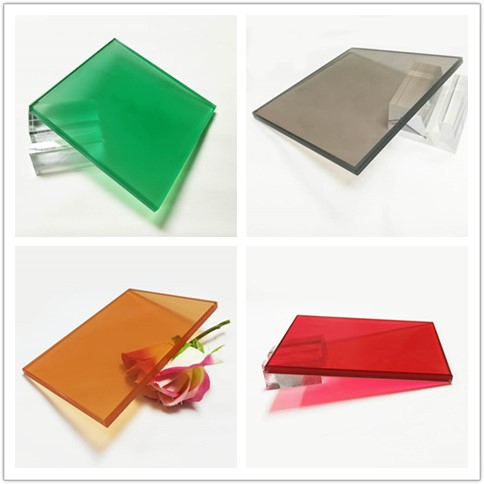

  • EVA color: clear, blue, black, gray, green, yellow, orange, bronze, red, color could refer by RAL pantone;
  • Thickness: 4+4mm, 6+6mm, 8+8mm, 10+10mm, and other thickness;
  • Size: flat shape maximum size reach 3300*7000mm, curved shape minimum radius reach 600mm;
  • Processing works: holes drill, edges polish, cutouts, cut notches, all of this will refer to client requirements;
  • Quality standard: according to ISO 9001, CCC, CE-EN14449, SGCC- Z97.1;
  • Packaging: high performance safe export plywood crates with corks separate and plastic film fully covered;
  • Production time: 15 working days after order confirmed

Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory

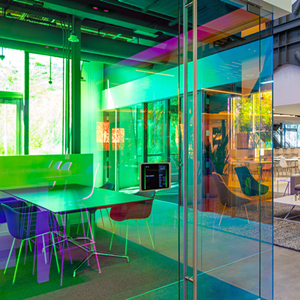

Tempered EVA laminates also call tempered EVA film laminated glass, which match with two toughened glass layers, and EVA interlayer, the EVA interlayer also have different color for choices, EVA film glass like PVB film glass popular in different projects, main apply in interior uses like partition wall, shower door, others like facade, curtain wall, for there are many different color could be selected, it’s a very popular building glass in modern building.


Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory

EVA color we generally select by RAL pantone chip, which is international Chip, it’s a bridge for glass factory discuss well with contractor, as a professional building glass factory in China, JIMY GLASS all the production shall based on clients accurate requirement, make sure all the glass products could reach their target.

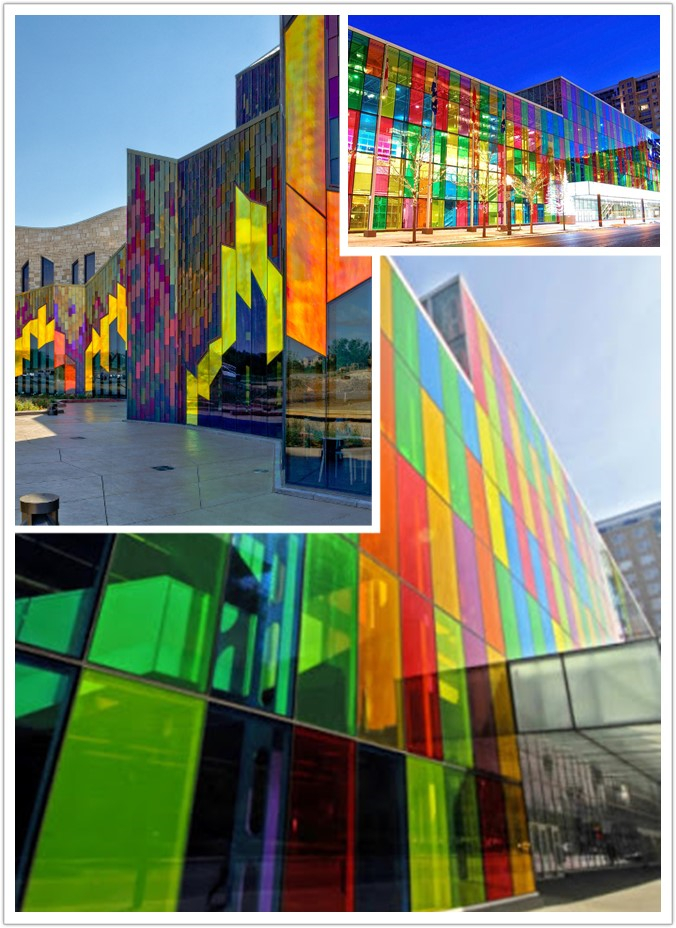

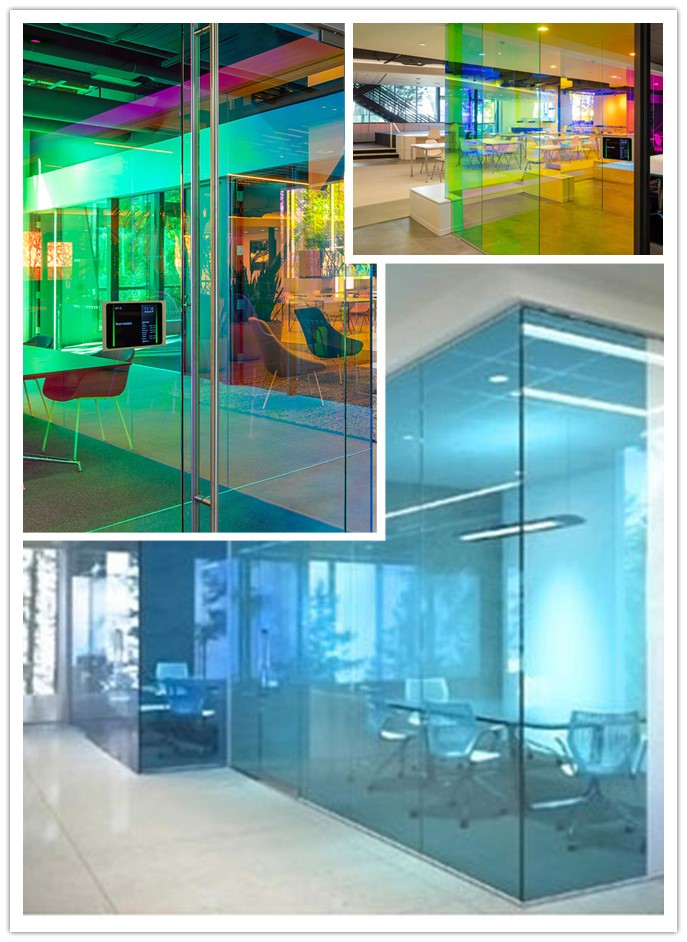

Below is International color Pantone chip which could buy everywhere in the world, and eva film glass projects photos.

Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory

Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory

Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory


Why select EVA film not PVB film in some building projects?

1.Both EVA film and PVB film have different colors, but the color of EVA film have more choices than PVB film;
2.Sometimes, because of the flow feature of EVA film, which could add other materials, it is widely used to make the interior decorative laminated glass;
3.EVA film has stronger moisture and heat resistance;
4.EVA film could reduce the possibility of bubbles and delaminate;
5.EVA is more resistant to aging and could maintains its high transparency for a very long time.

SGCC CE certified tempered colored EVA laminated glass China supplier

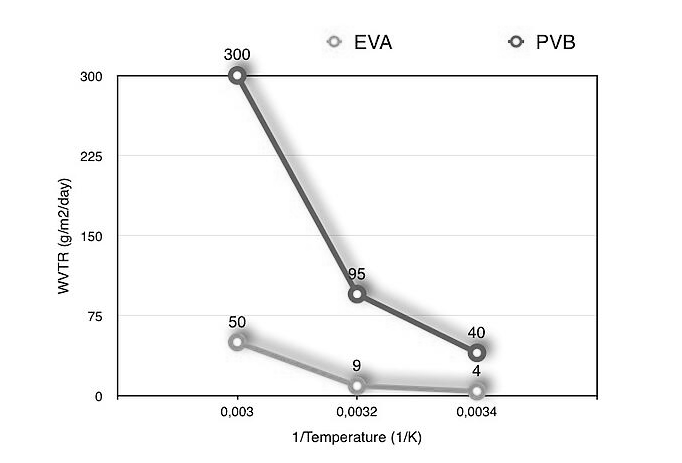

Above graph shows the PVB film has an average of 8-9 times higher tendency to permeate water than EVA film, it’s property gives to EVA film a great advantage compared to PVB in terms of transportation, storage and use. Not just that also in terms of product resistance against weathering conditions. Normally for capillarity PVB laminates suffer from water penetration around the edges and glass lamination pieces angles affecting negatively the durability and the mechanical resistance of the laminate. The following picture shows how delaminate might happen in a floor glass laminated structure that is subjected to periodical cleaning jobs:


SGCC CE certified tempered colored EVA laminated glass China supplier


Specification of tempered EVA film laminates


Glass shape Flat, curved, irregular shape
Glass type EVA film toughened laminated glass, tempered EVA safe glass
Available thickness 4+4mm, 6+6mm, 8+8mm, 10+10mm
Available design For high light transmittance, have clear glass and ultra clear glass
For decorative, have colored glass, patterned glass, textured glass, ribbed glass, silk printed glass, etc.
For privacy, have frosted glass, etched glass, smart glass, etc.
Other customized design
Process works Cut into size, drill holes for shower door handle, cut notches for shower door hinges, other customized processing


Why choose toughened EVA laminated glass from us?

1) Select grade A float glass material with no chips zero bubbles zero scratches and perfect flat surface.
2) Our own advanced temper and laminate machine to guarantee our tempered laminated glass quality, with splendid temper stress uniformity, the self explosion rate reduce to 0.1%, use top 3 China brand EVA interlayer make sure zero delaminate and very good quality on glass.
3) Strict quality control according to ISO9001, make sure accurate size, thickness, and process works when delivery
4)Use customized strong plywood crates with corks separate and plastic film fully covered to guarantee safety and avoid breaking when sea transportation.
5) Fast respond for after-sales service, any problems will solve soon in around 12-24 hours.

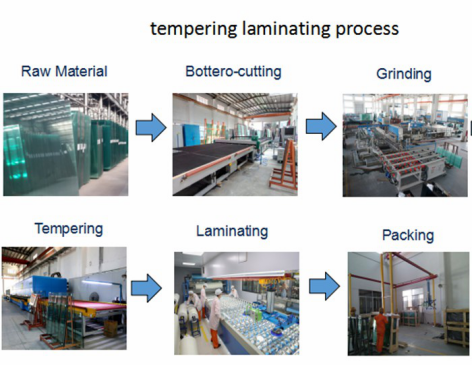

Our professional tempered EVA film laminated glass production flow, every step will have professional people control quality seriously.

SGCC CE certified tempered colored EVA laminated glass China supplier

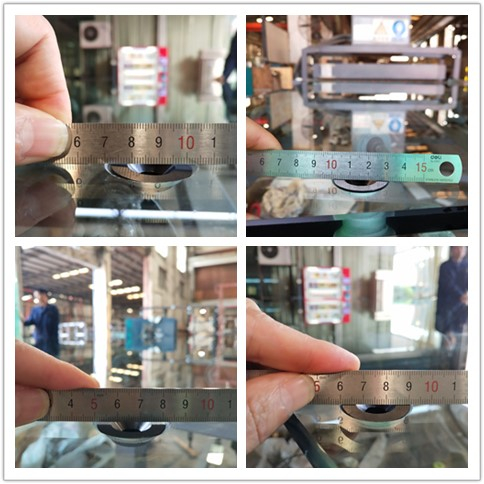

We inspect holes, edges, grooves, size, and thickness of EVA film tempered laminated glass, piece by piece, make sure every glass in our clients hand will be perfect.

Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory

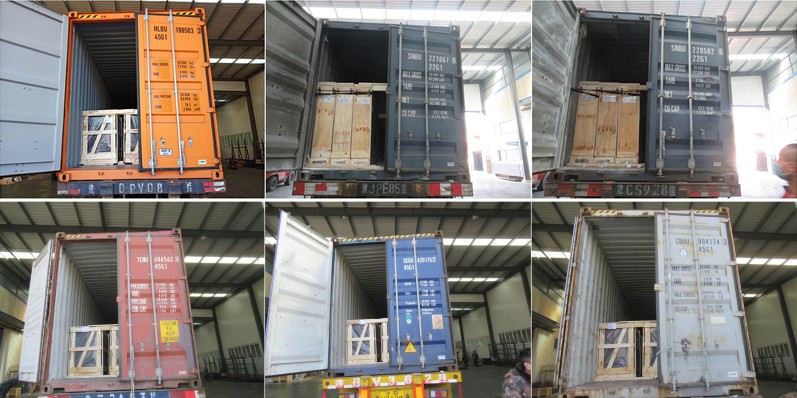

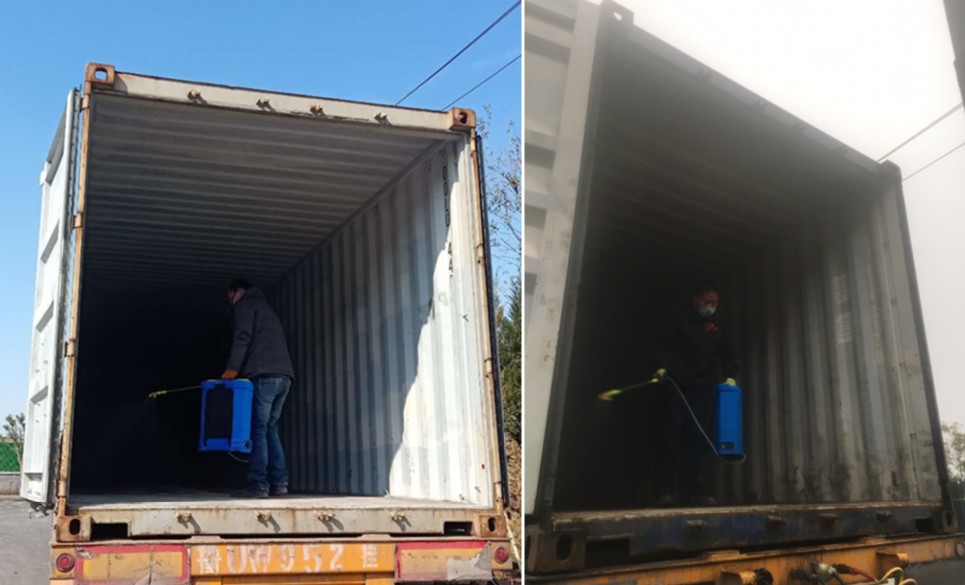

In conclusion, strong packages with very professional disinfection on EVA glass products and outside of container, make sure every cargoes in our clients hand will be safety.

Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory

Colored EVA laminates, tempered eva film glass, EVA toughened laminated glass factory
