4mm+12A+4mm clear float glass insulation,China clear insulated glass company4mm+12A+4mm clear float glass insulation,China clear insulated glass company4mm+12A+4mm clear float glass insulation,China clear insulated glass company4mm+12A+4mm clear float glass insulation,China clear insulated glass company

4mm+12A+4mm clear float glass insulation,China clear insulated glass company

  • Soundproof and heatproof glass
  • Keep interior warmer in the winter and cooler in the summer
  • Maximum size could reach to 2500mm*4000mm
  • Most popular use as UPVC window glass and conservatory glass
  • Production time within 15days after order is confirmed
  • All the glass pack in strong plywood crates with metal belt



4mm+12A+4mm Clear Insulated Glass Company in China



About 4mm+12A+4mm Clear Insulated Glass

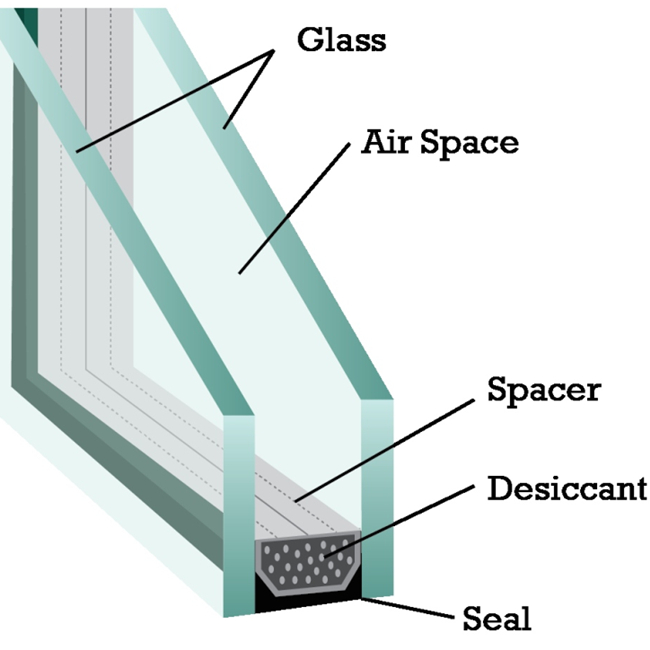

4mm+12A+4mm clear insulated glass unit consists of two panes 4mm clear float glass separated by an aluminum spacer and sealed together at the edge. The insulating airspace is filled with dry air or a noble gas, such as argon or krypton inside to slow the heat exchange and reduce noise levels. The aluminum spacer is filled with silica desiccant pellets to ensure removal of any moisture in the airspace. The IGU is designed to keep homes warmer in the winter and cooler in the summer.



4mm+12A+4mm Clear Float Glass Insulation Characteristic

Optical Properties

The 4mm+12A+4mm clear insulated glass systems has very high visible light transmittance, and low visible light reflectance;



Thermal Properties

The U-value is effectively lowered by double glazing units and can be further reduced by filling of inert gases like argon gas;



Acoustical Insulation

Insulated glass has good sound proof function, can reduce noise by more than 30 dB;



Condensation

The dew point of JIMY GLASS insulating glass is below -65 °C which guarantees no condensation formation under normal applications;



Sealing

Aluminum spacer is automatically curved and formed with the fewest joints and dual seals are applied, which ensures excellent sealing characteristics and long application life-time.



4mm+12A+4mm Clear Flaot Glass Insulation Specification

Size: Max: 2500mm*4000mm, Mini: 180mm*350mm

Spacer Fill: Dry Air, noble gas like Argon, etc.



4mm+12A+4mm Clear Insulated Glass Application

• Exterior UPVC Windows and doors;

• Outside Facades and conservatories;

• Interior partition walls and Refrigerators;

• Many others.

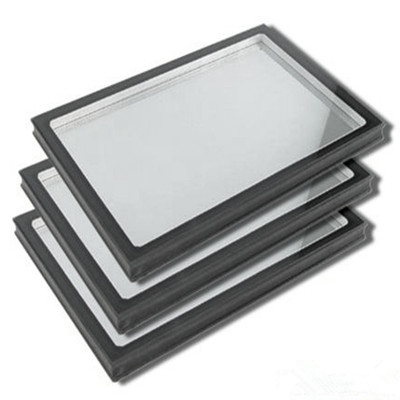

4mm+12A+4mm Insulated Glass Units

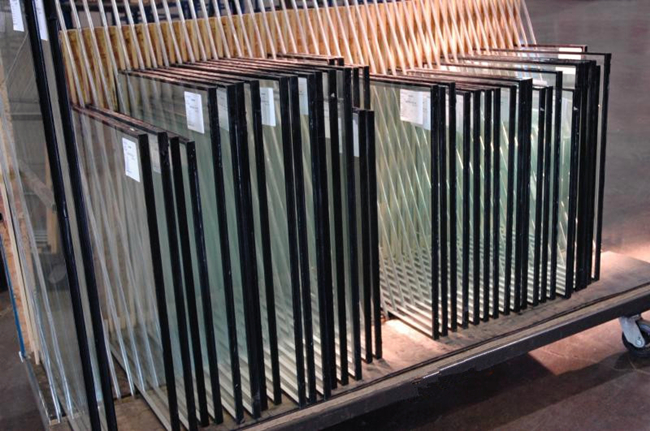

China clear float glass insulation

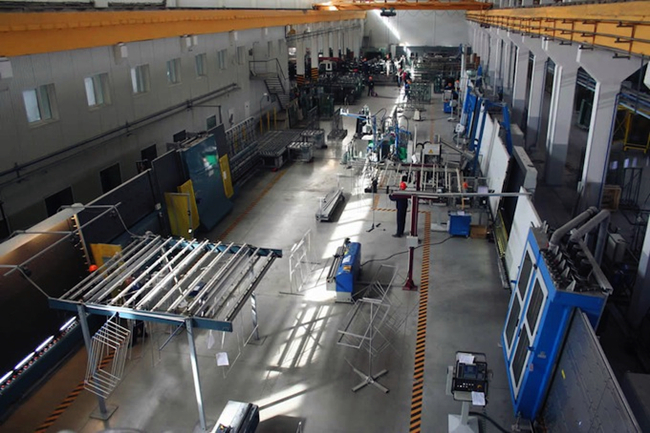

Insulated Glass Workshop

clear double glazing company

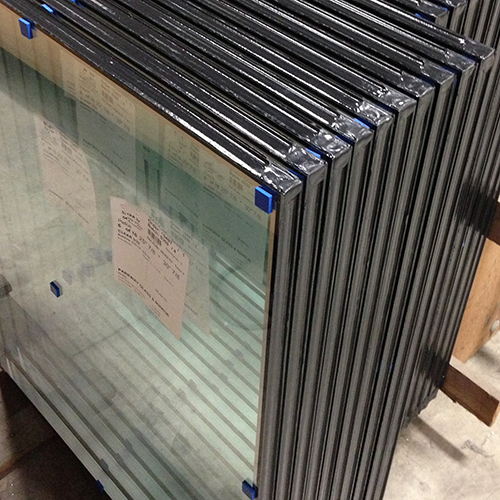

Insulated Glass Safety Loading

China clear insulated glass manufacturer
