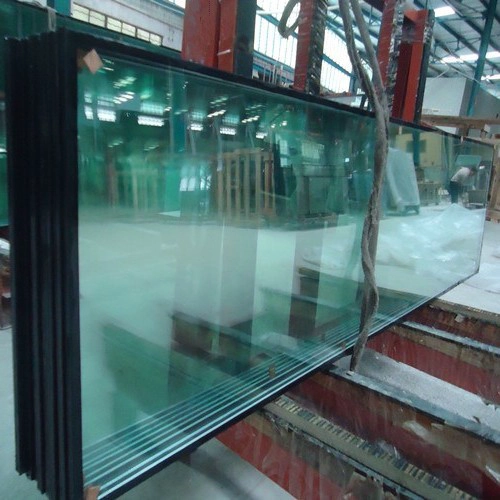

Architecture skyscraper modern reflective insulated glass facades and tempered laminated insulated curtain wall glassArchitecture skyscraper modern reflective insulated glass facades and tempered laminated insulated curtain wall glassArchitecture skyscraper modern reflective insulated glass facades and tempered laminated insulated curtain wall glassArchitecture skyscraper modern reflective insulated glass facades and tempered laminated insulated curtain wall glass

Architecture skyscraper modern reflective insulated glass facades and tempered laminated insulated curtain wall glass

  • flat insulated glass curtain wall, curved insulated glass facades
  • Thickness: 4+9a+4,5+9a+5,6+12a+6, 8+12a+8,13.52+12a+10, etc.
  • Original glass type: Clear glass, low iron glass, tinted glass, reflective glass, low-e glass,etc.
  • Glass color: Clear, ultra clear, bronze, golden, blue, green, grey, black, etc.
  • Dimension: Max 2500x4000mm, any customized could be produced;
  • Processing: Custom cut size, polished edges, drill holes and cut notches to install fittings, etc.
  • Features: High light transmittance, energy saving, decoration, easy to maintain, etc.

China high quality structural safety tempered laminated insulated Glass Facades

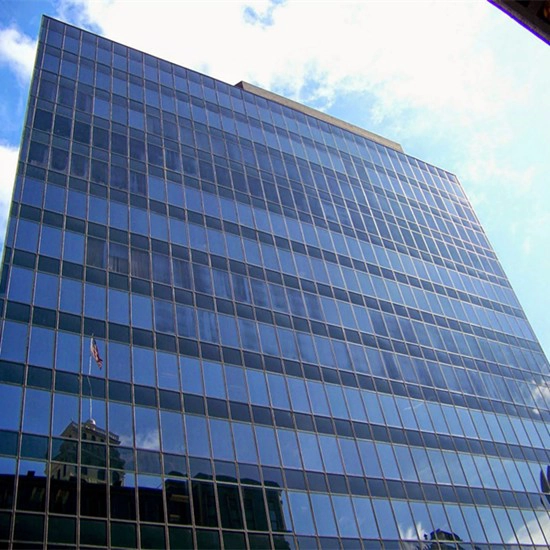

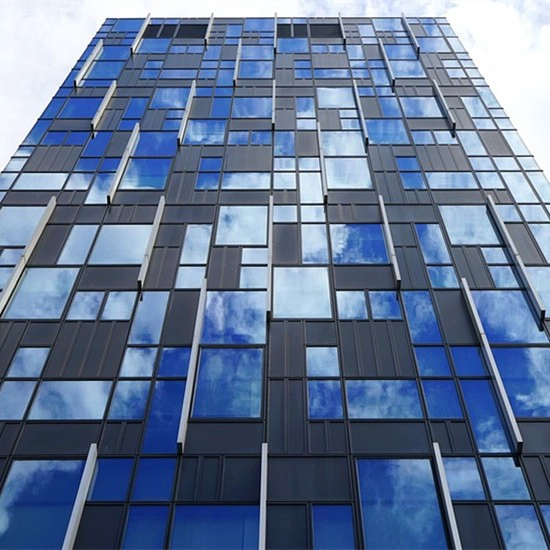

Reflective glass curtain wall, can be single panel reflective tempered glass or double glazing to made. The glass curtain wall is a beautiful and novel building wall decoration method, which is a distinctive feature of the modern high-rise era.

The modern high-rise building glass curtain wall adopt the double insulated glass which made by the reflective glass/ low e glass combination of the ordinary glass and then filled with dry air or inert gas. Insulating glass is divided into two layers and three layers. Two layers of glass are sealed to form a sandwich space. For the three layers of glass which has two interlayer space by three layers of glass. Insulating glass/Hollow glass has the advantages of sound insulation, heat insulation, anti-frost, moisture resistance, and strong wind pressure resistance. According to measurements, when the outdoor temperature is -10°C, the temperature in front of the single-layered glass window is -2°C, while the room temperature using the triple-layered insulating glass is 13°C.  In the hot summer, double-glazed insulating glass can block 90% of solar radiant heat. The sun can still pass through the glass walls, but most of the sun does not feel hot. The use of insulated glass curtain walls can make it cool in winter and cool in summer and greatly improve the living environment.

The Basic Classification for glass curtain wall

1.The frame supports the glass curtain wall including of bright frame glass curtain wall,  Semi-exposed Framing Glass Curtain Wall and hidden framing glass curtain wall
2.Full glass curtain wall (the glass thickness have to not less than 10mm, if laminated glass not less than 8mm; When the glass curtain wall exceeds length of 4m (glass thickness 10, 12mm), 5m (glass thickness 15mm), 6m (glass thickness 19mm), the full-glass curtain wall should be suspended on the main structure.
3. Point supported glass curtain wall, the glass must be tempered processed.

What type glass can be used for the Glass Facades?
1.Low E Glass ( online low glass or off-line low e glass) can be according to different U-rate required to customized the glass as per required)
2.Solar control glass ( Including of tinted glass and reflective glass)
3.Safety glass( tempered glass, laminated glass)
4.Screen printing glass( can be printing in different color, pattern as per design, looks more beautiful)

5.U profile glass, can be any color,easy to installed and reduce the glass weight.

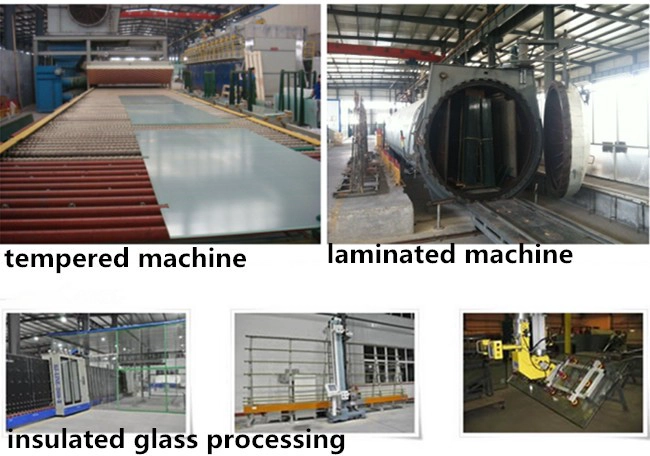

Our deeprocessing glass machine for tempered glass, laminated glass, insulated glass:

processing tempered laminated insulated glass

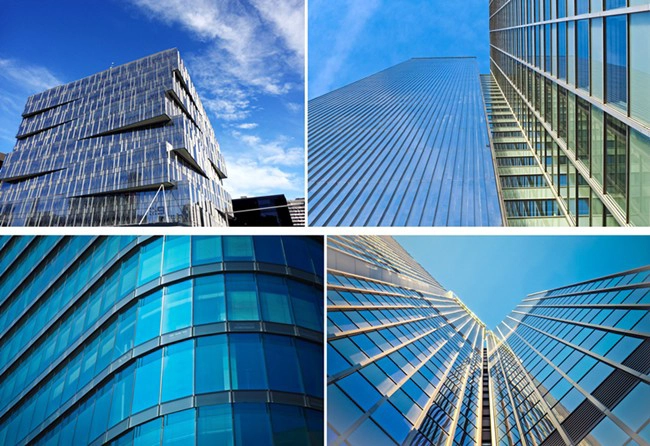

Architecture modern building reflective insulated safety glass facade

architecture_modern_building_glass_facade

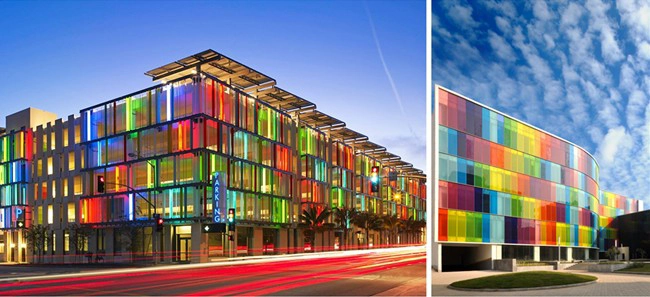

High quality color laminated glass for glass facades:

color laminated glass for glass facade

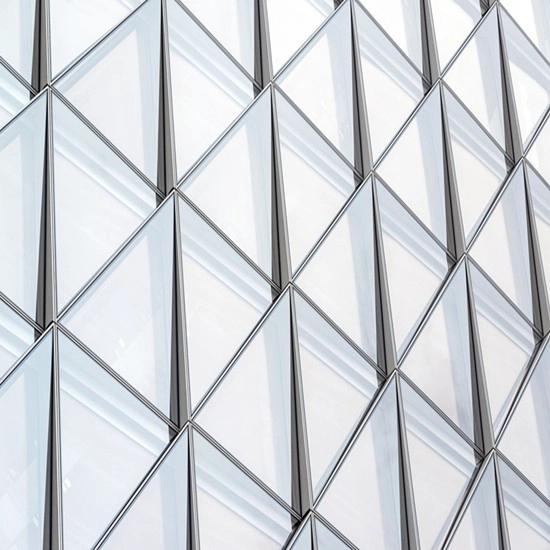

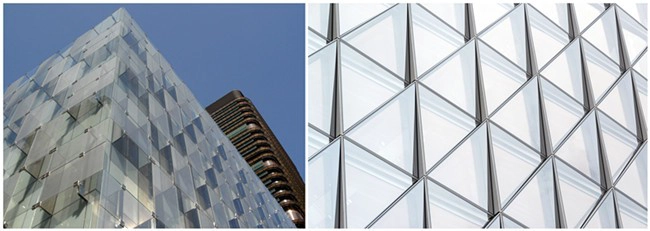

Transparency tempered  laminated glass curtain wall
transparency tempered laminated -glass_curtain_wall_

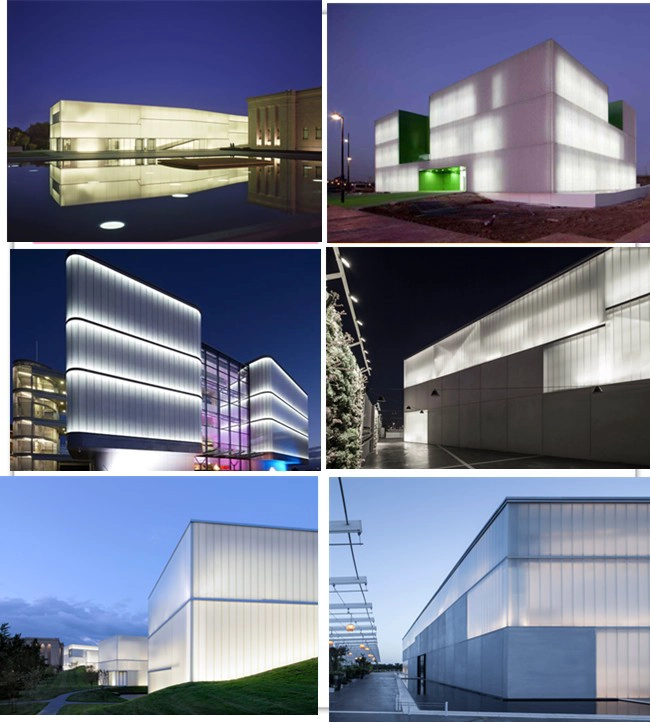

Translucence U shape glass for curtain wall glass

U profile glass curtain wall
