China high quality solar control energy saving soundproof reflective insulating glass suppliers
- Product name: solar control energy saving soundproof reflective insulating glass
- Glass types available in: low e reflective insulating glass, laminated reflective double glazing unit, etc.
- Glass shape: flat curved reflective insulated glazing unit
- Glass advantages: lightweight, soundproof, heat proof, energy saving glass
- Production time: around 15 days after the order confirmed

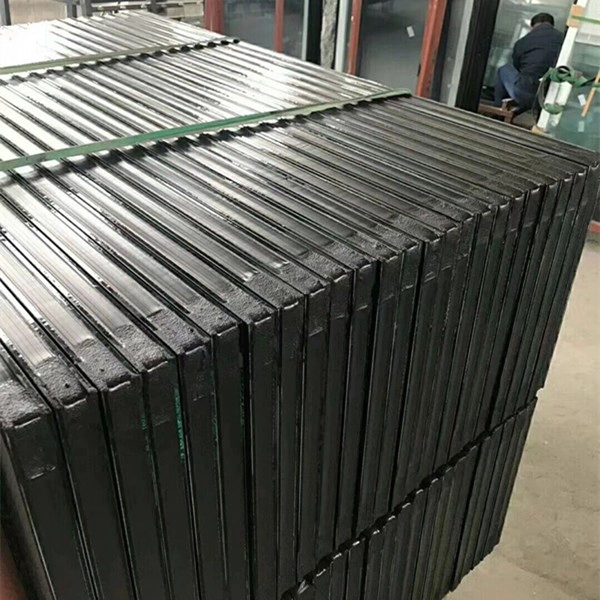

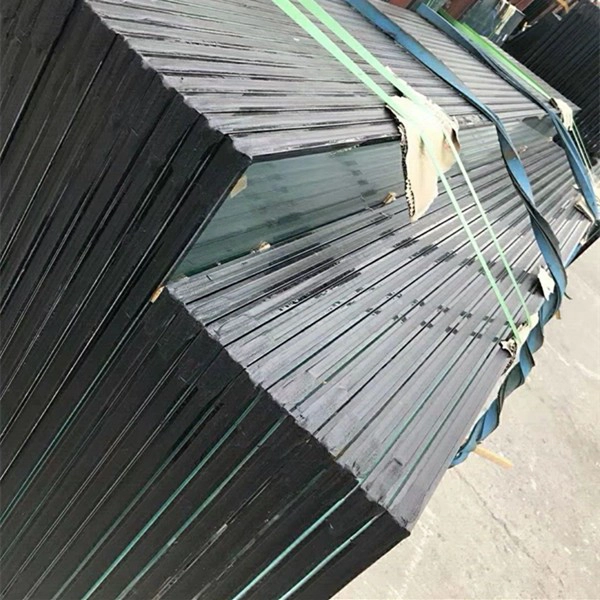

- Strong export plywood crates for safety packaging
China flat or curved reflective insulating glass units manufacturer

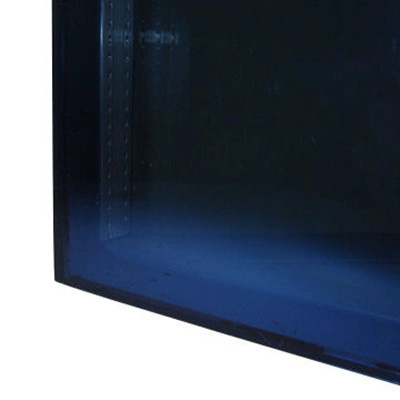

About Reflective insulated glass
Reflective insulated glass is made by reflective glass with other type glass to make the double glazing, so its with reflective glass and insulated glass function, which is solar control, energy saving ,soundproof,etc, so its popular to used on the glass window, curtain wall glass, facade glass, skylight glass,etc.
Characteristics
- Improve the thermal performance of glass when used in architectural applications.
- Meets the special requirements for temperature control, sound control, light and solar control, and security.
- Avoid the light pollution and build good ecological environment.
- Control solar energy radiation effectively, block far infrared radiation, save expenses of air conditioners in summer, save heating expenses in winter, have good effect of heat preservation and energy saving.
- Can be fabricated with patterned glass for increased aesthetics; coated, tinted, or low-E glass for thermal control.
Specifications:
Characteristics
- Improve the thermal performance of glass when used in architectural applications.
- Meets the special requirements for temperature control, sound control, light and solar control, and security.
- Avoid the light pollution and build good ecological environment.
- Control solar energy radiation effectively, block far infrared radiation, save expenses of air conditioners in summer, save heating expenses in winter, have good effect of heat preservation and energy saving.
- Can be fabricated with patterned glass for increased aesthetics; coated, tinted, or low-E glass for thermal control.
Specifications:
| Shape | Flat & Curve |
| Size | Customized size (Max:2500mm~3500mm Mini:180mm~350mm) Minimum radius:500mm Max length of arc 1350mm(R<1200, H<2370) 2400mm(R>1200) 3600mm(R>1200 H<2370) |
| Glass Color | Clear, Extra Clear, French Green, Dark Green, Ford Blue, Dark Blue, Euro Bronze, Golden Bronze, Light Grey, Dark Grey, etc. |
| Glass Type | Low-E reflective insulated glass, tinted reflective insulating glass, tempered reflective insulated glass, curved tempered reflective insulated glass, laminated reflective insulated glass, curved laminated reflective insulated glass,etc. |
| Thickness |
4+6A+4mm, 5+9A+ 5mm, 6+12A+6mm, 8+12A+8mm, etc. |
| Aluminum Spacer Width | 6,9,12,16mm (1/4", 11/32", 1/2", 5/8") |
| Spacer Fill |
Dry Air, Argon, etc. |
| Quality |
Matches the GB/11944-2002 |

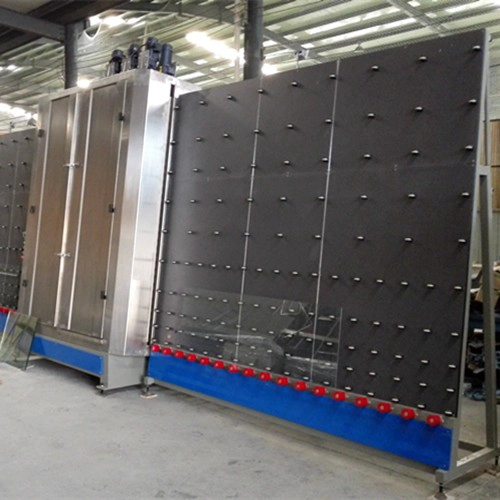

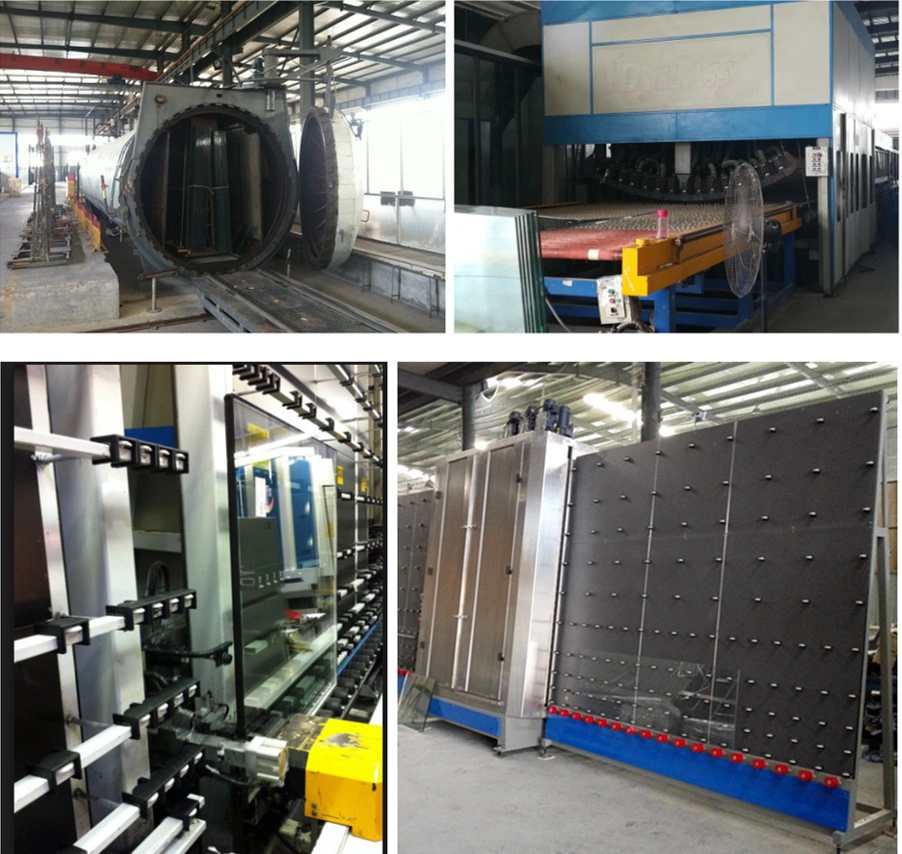

Our production equipment for reflective insulated glass units:

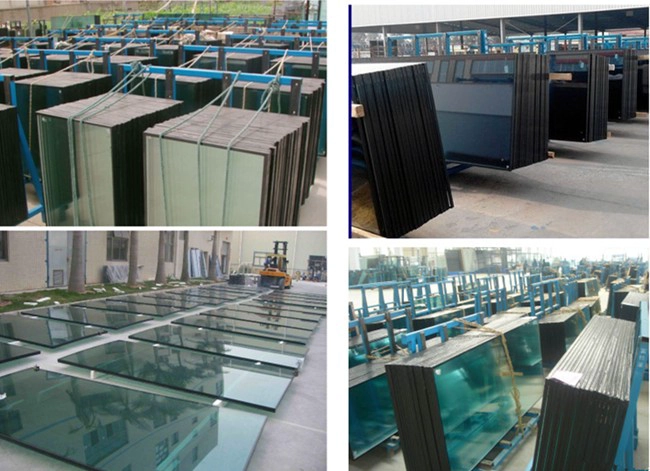

Insulated glass warehouse

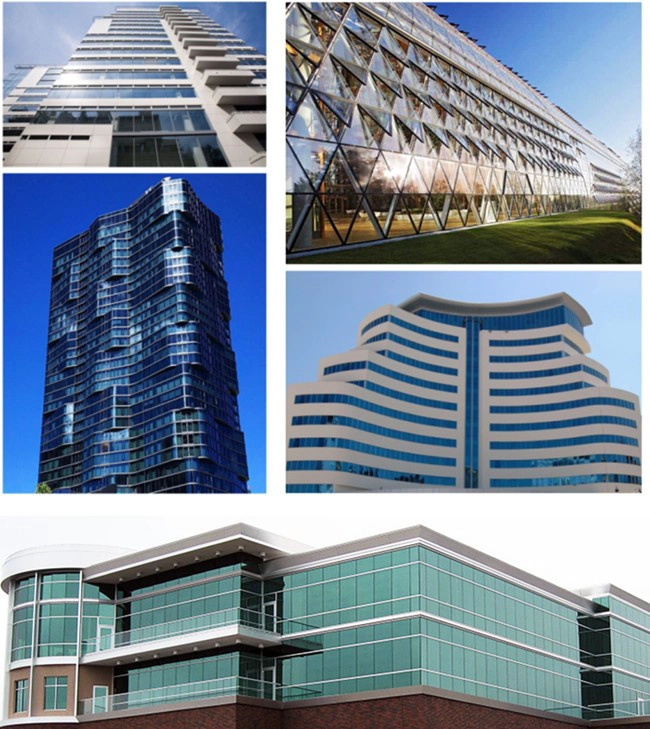

Tempered-laminated-reflective insulated glass :
