China 5+5mm Safety PDLC Film Privacy Smart Glass Factory

About 5+5mm Safety Smart Glass

5+5mm smart glass also call privacy glass, switchable transparent glass ( STG ), switchable smart glass, smart film glass. It is state of the art laminated glass with a PDLC film interlayer between two sheets of 5mm safety tempered glass. The PDLC film is two layer PET-ITO conducting film + Middle inside (LCD) Liquid Crystal Membrane.

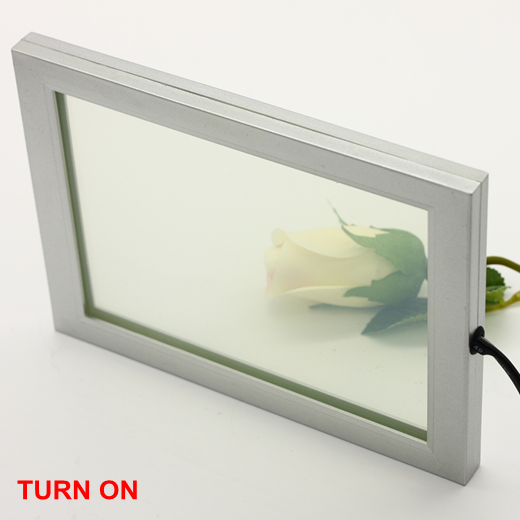

The smart glass is an intelligent high function glass, which has a special characteristic of changing between tranparent and opaque by voltage control. When privacy is required the current is switched off and the crystals scatter into a random formation which prevents vision through the glass.

Safety Switchable Glass Characteristic

• Changes from opaque to clear with switch

• Blocks 99% UV light when turned to opaque

• Provides privacy with a touch of switch

• Saves costs for heating, air-conditioning and lighting

• Avoids the cost of installing and maintaining blinds or curtains

• Degree of transparency can be controlled

5+5mm Safety Intelligent Glass Specification

Glass size: Max 3000*5000mm, when size smaller than 1830*3300mm, one electrode is enough, larger than 1830*3300mm, need to use two electrodes

PDLC film: thickness 0.5mm, the widest size 1500m, and no limit on the length

5+5mm Safety Smart Glass Application

• Command center of government facilities

• Executive offices and conference room

• Storefronts, Skylights, Windows, Curtain walls

• Office partition & Interior partitions

• Bathroom shower screens

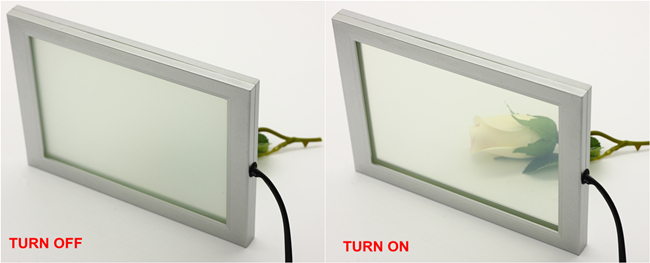

5+5mm Safety Switchable Smart Glass

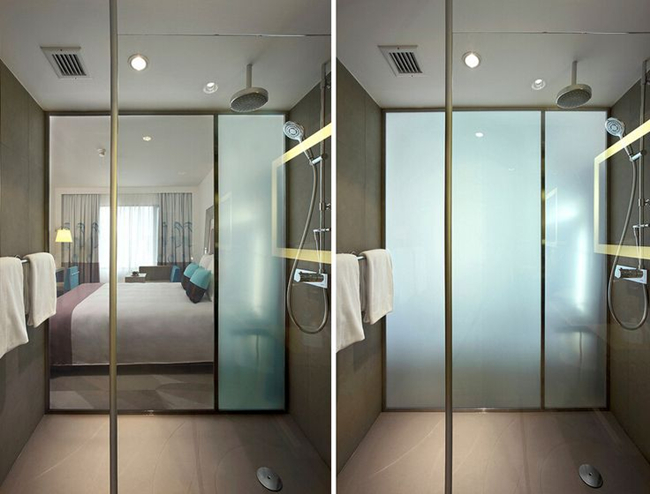

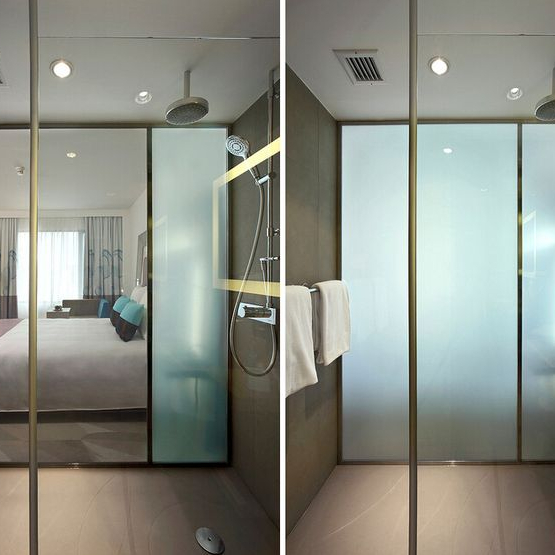

Safety Smart Privacy Glass For Bathroom

Intelligent Glass Safety Packing
